Description

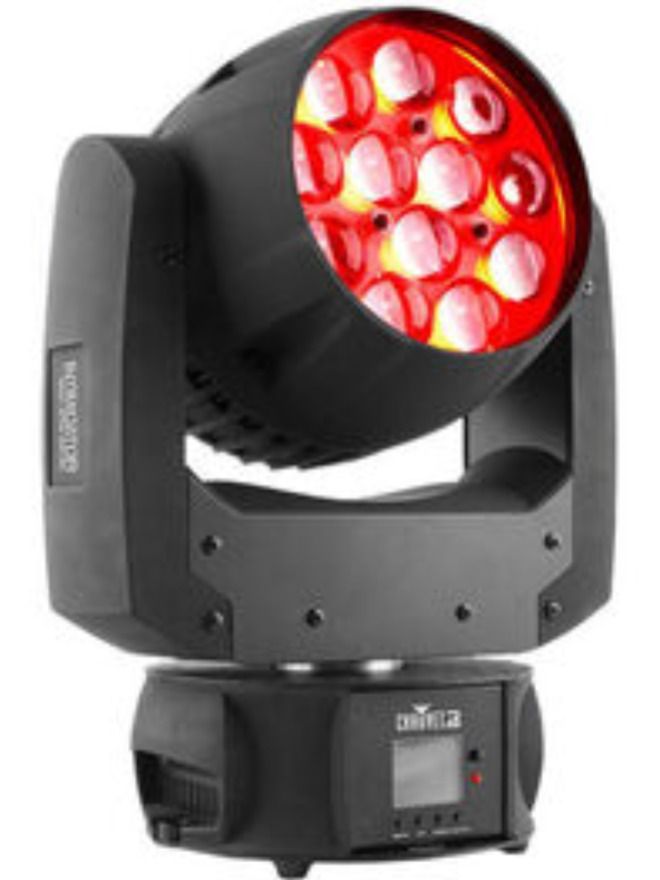

Feature-packed compact moving head wash fitted with 20 W quad-color RGBW LEDs
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually directly from the full-color LCD display
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound modes
Convenient, wireless non-DMX control using the optional IRC-6 remote
Motorized zoom for short-throw or long-throw applications
Generate complex looks easily with built-in, eye-catching auto programs with zone control
Simple navigation and a full text readout with the full-color LCD screen
Save time running cables by power linking multiple units
Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs
Fits best in the CHS-50 VIP Gear Bag
Specifications
DMX Channels:14, or 29
DMX Connectors:3-pin XLR
Pan and Tilt:540°/270°
Pan and Tilt Ranges:540°, 360°, 180° pan/270°, 180°, 90° tilt
Light Source:12 LEDs (quad-color RGBW) 20 W (3.7 A), 50,000 hours life expectancy
Strobe Rate:0 to 20 HzPWM
Frequency:1,200 Hz
Zoom Angle:7° to 34°
Illuminance:(7°): 21,560 lux @ 2 m (34°): 2,320 lux @ 2 m
Power Linking:4 units @ 120 V; 8 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:219 W, 1.9 A @ 120 V, 60 Hz 207 W, 1 A @ 230 V, 50 Hz
Weight:15.8 lb (7.2 kg)
Size:7.6 x 10.9 x 14.3 in (194 x 277 x 363 mm)
Approvals:CE
